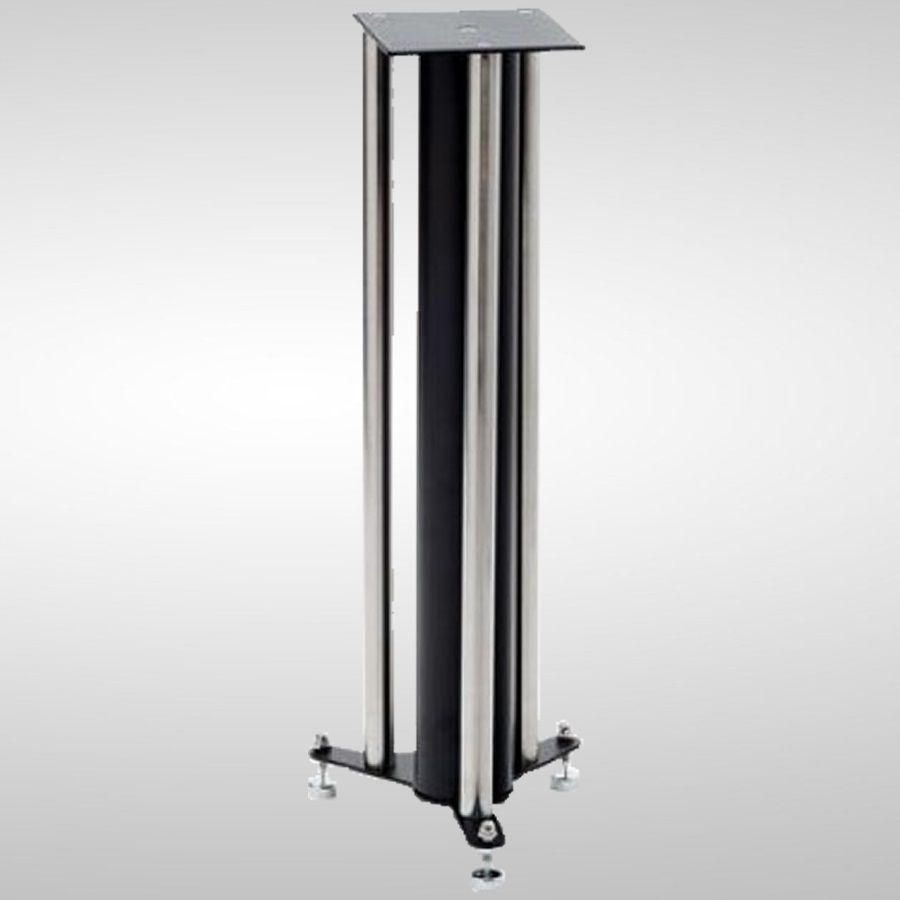

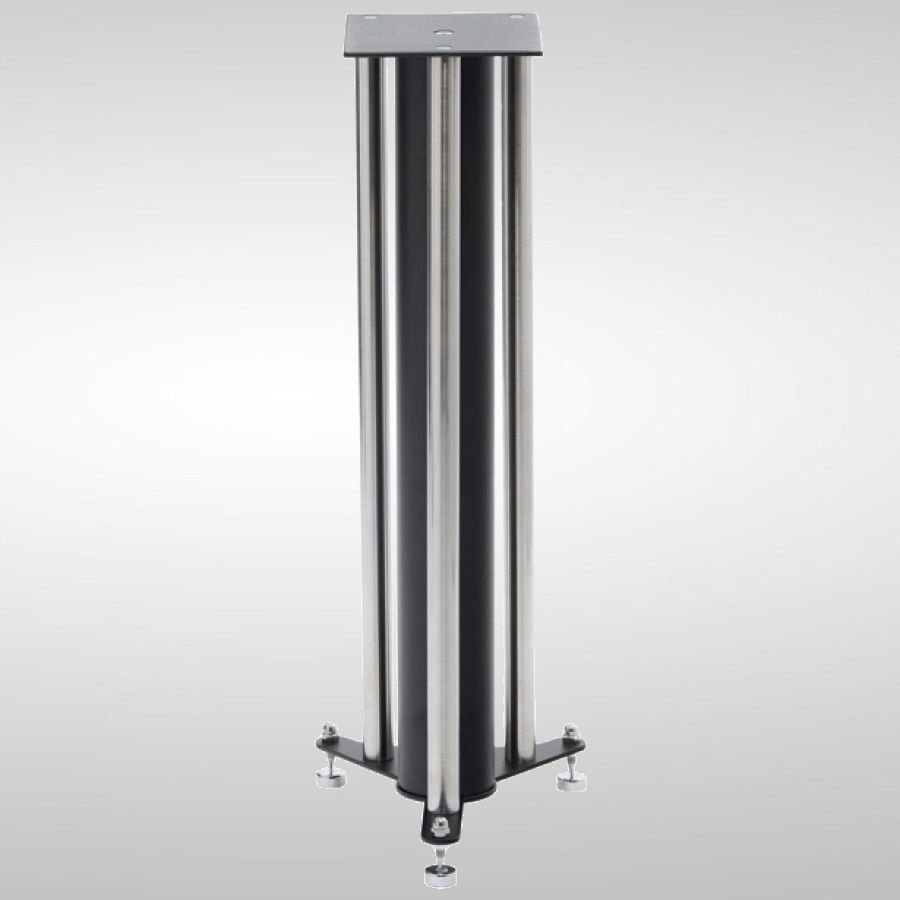

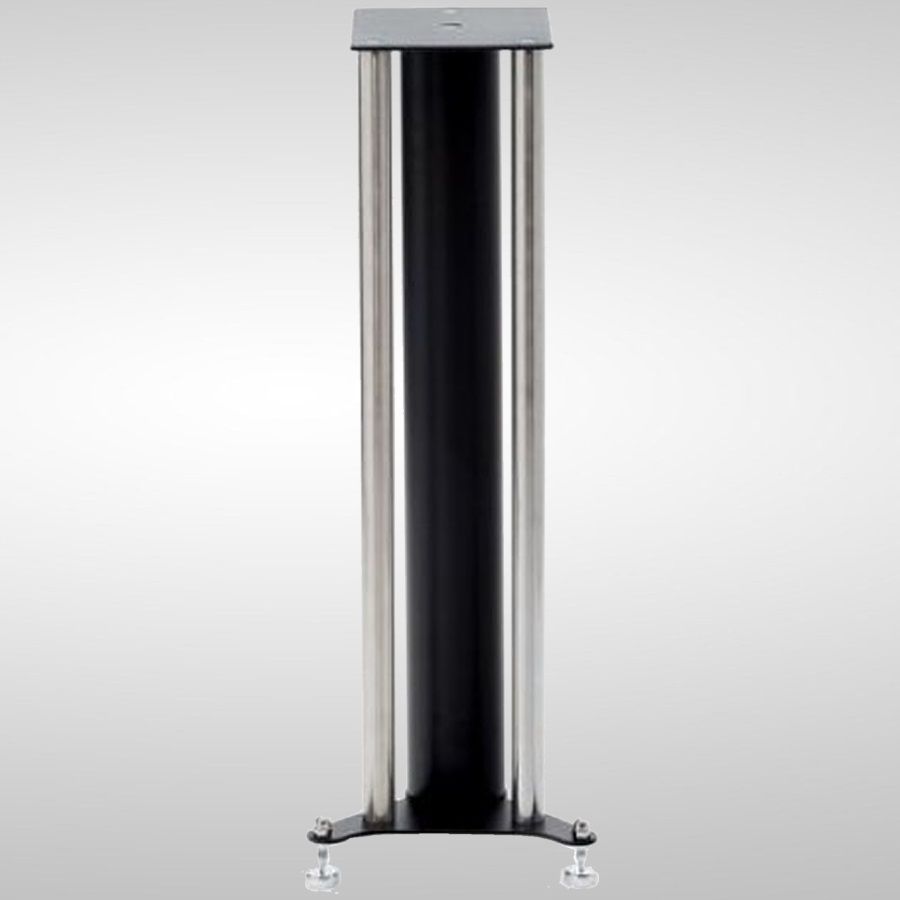

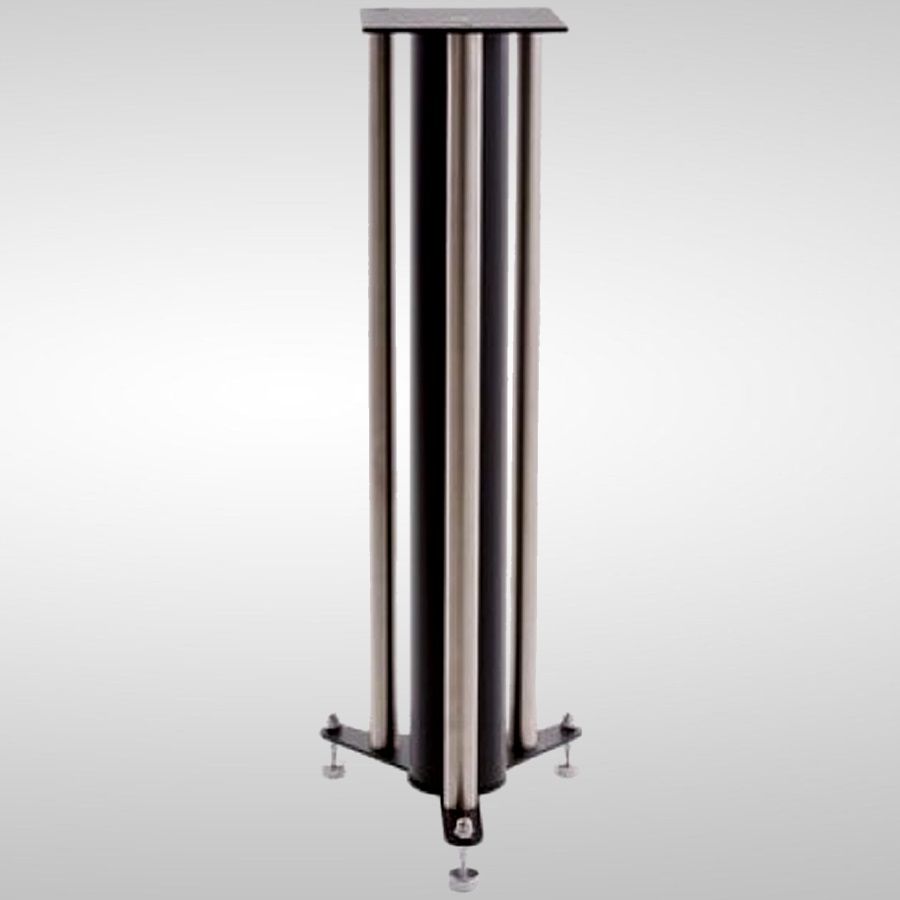

Custom Design FS 103 (Standard model) Specifications
  • • Columns: One 76mm (3in) column + three 25mm (1in) satellite columns
  • • Top Plate Dimensions - 4mm CR4 Steel:  150 x 170 mm (5.9 x 6.7in)
  • • Base Plate Dimensions - 4mm CR4 Steel:  230 x 300 mm (9 x 12.6in)
  • • Total Height: 610mm (24in) (not including spikes), Custom Heights Available, Call for Details
  • • Floor Spikes & Fixing Bolts: 1" Zinc-plated M8 Isolation Spikes and Zinc-plated M8 Fixing Bolts
FS 103 Speaker Stands - Small yet Mighty
starting from  $359.00 - $409.00/pair

FS 104 Signature XL speakers require a speaker stand support to achieve perfect positioning and that provide a completely rigid, isolating support platform for the speaker to operate at the maximum performance possible. This can be achieved through the integrity of the speaker stand, the number of supporting columns, the engineering incorporated in to the design, the type and number of fixings. Custom Design has addressed each of these requiements and additionally incorporated their propreitary isolating Acoustic Steel™ with a 7" x 11" (180mm x 280mm) 4mm Acoustic Steel™ top plate to perfectly fit the FS 104 Signature XL loudspeaker. The resonance energy absorption and conversion properties of the top plate and the quality and thickness of column materials used, make the Custom Design FS 104 Signature XL Speaker stand the best and only choice to really allow your speakers to realize their true potential.

The FS 104 Signature XL speaker stands are designed and manufactured by Custom Design to provide the perfect isolating solution for speaker cabinets. The perfectly sized Acoustic Steel™ top plate and the 5 column design of the FS 104 Signature XL Speaker stand provide the perfect isolating solution for the speaker cabinets. Speaker cabinets resonate most in the middle of the cabinet, therefore the best possible isolation points are the corners of the cabinet, which resonate the least. That is why Custom Design provides a top plate to compliment the speaker cabinet at 7" x 11" (180mm x 280mm) to help our customers achieve the best possible listening experience and sound performance from their FS 104 Signature XL speakers.

Four Reasons FS 104 Signature XL Loudspeakers Mounted on Custom Design's speaker stands Sound so Much Better Than When on Other Stands:

  •  Stands are very rigid from the 3" (76mm) ERW BS EN 10305-3 central column and four 1" satellite support columns being tied together by ‘H’ shaped top and bottom plates forming a tight box frame structure with no unnecessary mass
  •  The top plate supporting the loudspeaker is fabricated from resonance energy-absorbing inert Acoustic Steel™ which is a sandwich of two steel plates with a damping material layer between. Vibrations from the cabinet and the stand itself get turned into heat rather than introduce colorations into the sound
  •  The top plate dimensions better fit the loudspeaker cabinet dimensions putting the satellite posts closer to the corners of loudspeaker's underside where they can be the most effective
  •  The 3" central column can be filled with Custom Design specially selected Inert Filler and the amount of filler used governs the bass performance to suit your particular speakers

In all, the thickness and millimeter precision laser cutting to of the top and base plates and the size and placement of the colums and the use of high-quality zinc plated M8 fixing bolts combine to ensure all of the parts fit together perfectly. The spikes of the speaker stands can be easily adjusted from the top with the Allen Key wrench, provided, and optional floor protectors are available.


Choose Options & get Pricing

All FS 103 Speaker Stands are 610mm (24") tall (Custom Heights Available, Call for Details) and also as Standard, include a Black Center Column with CR4 Steel Top and Base Plates

Select Desired Finish for the Satellite Support Columns -
