Custom Design FS 104 Signature (Standard model) Specifications
  • •  Columns: One 78mm (3in) column + four 25mm (1in) satellite columns, available in Black or White (Chrome & Brush Chrome available for additional charge
  • •  Top Plate Dimensions- 4mm Acoustic Steel:  165 x 180mm (6.5 x 7in) or 150 x 180mm (6 x 7in)
  • •  Base Plate Dimensions - 4mm CR4 Steel : 220 x 260mm (8.7 x 10.2in)
  • •  Total Height:  610mm (24") (not including spikes), Custom Heights Available - Call for details
  • •  Floor Spikes & Fixing Bolts: 1" Black Zinc-plated M8 Isolation Spikes with complimentary covers and Zinc-plated M8 Fixing Bolts

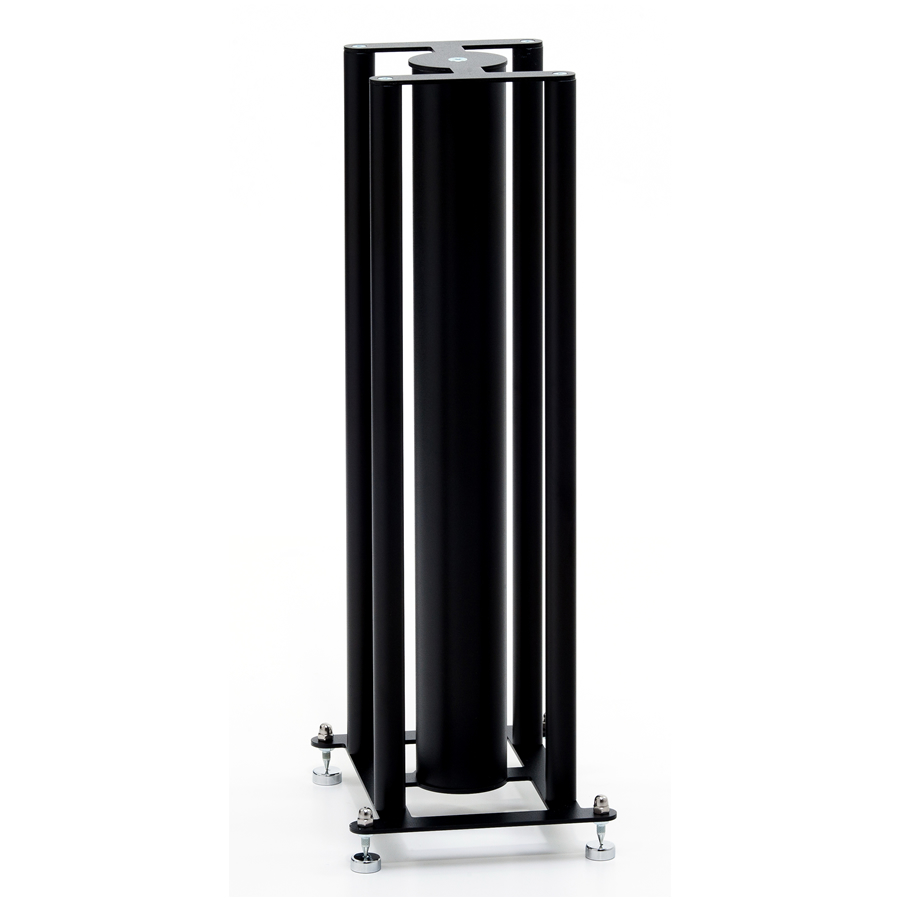

Custom Design FS104 Signature Speaker Stands - The bespoke satellite support design delivers both support and resonance removal
starting from  $359.00 - $469.00/pair

The Custom Design FS 104 Signature speaker stand is the most popular of all the stands that Custom Design makes and is not to be confused with the FS 104 Open Frame speaker stand. The difference is the Open Frame version has four 1" support columns while the FS 104 Signature adds a 3" central column and it is this extra column that is key to its sonic signature. A very high degree of rigidity is attained having four 25mm (1in) satellite support columns and single 76mm (3in) ERW BS EN 10305-3 central column. This 76mm (3in) central column can be easily mass loaded with Custom Design specially selected Inert Filler and the amount of filler used governs the bass performance so it can be fine tuned to suit your particular speakers.

In the FS 104 Signature Speaker Stand, the 4mm thick Acoustic Steel™ top plates and CR4 Steel base plates are laser precision cut into an "H" shape rather than the usual rectangular plate so there is a similar amount of material to an open frame design. Acoustic Steel™ is a proprietary inert materials designed to dissipate resonance energy away from the mounted speaker and is a key design feature of the 104 Signature speaker stand. Also cut into an "H" shape, the base plates are made from oiled and pickled CR4 Steel. Both are plates are hand-finished and powder-coated.

The plates and columns are secured with high quality zinc plated M8 fixing bolts ensuring these parts fit together firmly and the spikes can be easily adjusted from the top with the Allen Key wrench provided.

The stands are physically suitable for many stand mount speakers and with their good looks will enhance the apparent value of the loudspeakers. But it is the sound quality obtained that differentiates these support stands from many others including more expensive ones. The FS 104 Signature Speaker Stand combines bass control with neutral impact not taking away other desirable attributes the loudspeakers may have.

Good bass timing, open precise stereo imaging with an exciting and dynamic sound is achieved in comparision to other clunky stands that often impart dullness and a closed in sound.

The parts are carefully packaged reflecting the attention to quality that Custom Design imparts to all it's products. The Custom Design FS 104 Signature Speaker Stands are a serious alternative to the usual speaker stands that simply get the speakers off the floor and will deliver great long term satisfaction of your music collection.

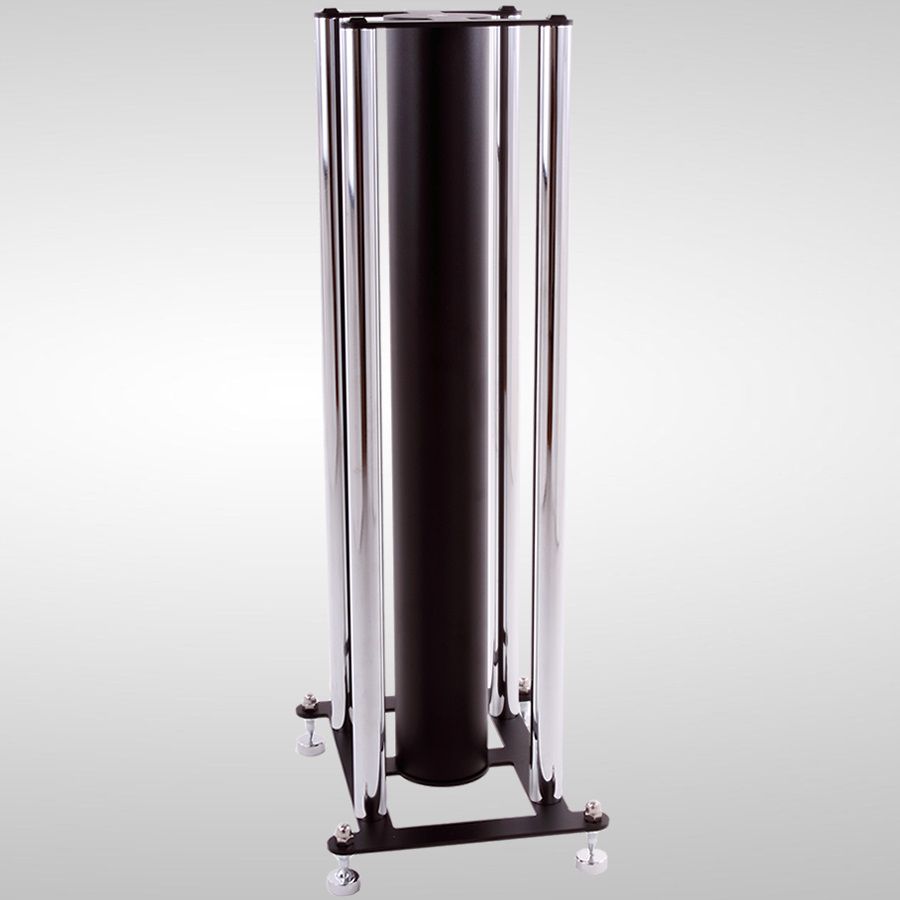

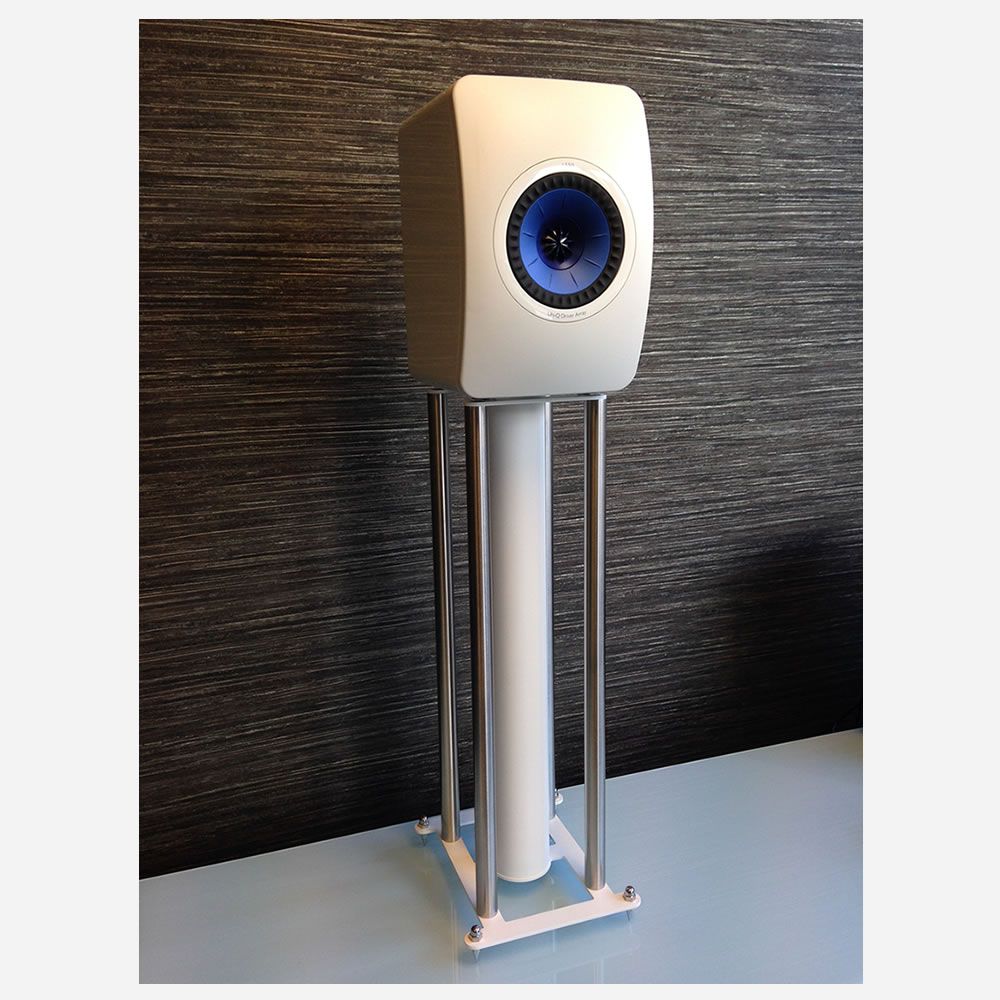

The standard Custom Design FS 104 Signature is 24" (610mm) tall but other heights can be specially ordered, and two sizes of top plate are curently available at 165 x 180mm (6.5 x 7in) or 150 x 180mm (6 x 7in) finished Black for both the center and satellite support columns. All white, and Chrome and Brushed Chrome satellite column finishes are available as optional extras.

Choose Options & get Pricing

All FS 104 Signature Speaker Stands are 610mm (24") tall (Custom Heights Available, Call for Details) and also as Standard, include Acoustic Steel Top plates and CR4 Steel Base Plates

Select Desired Finish for Center & Satellite Support Columns -
Select Size of Top Plate
